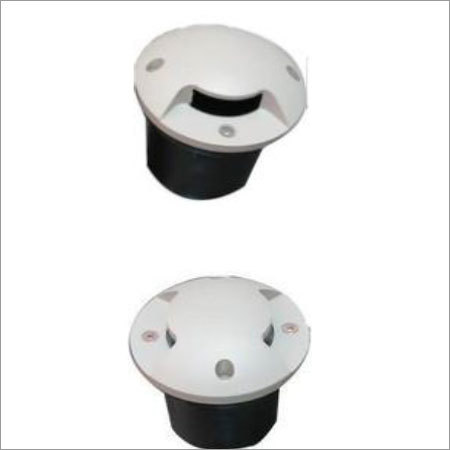

LED Path Lights

LED Path Lights
LED Path Lights
Product Code : N-22
Brand Name : Novius
Product Description
We are renowned as a Manufacturer and Supplier of LED Path Lights, based in Pune, Maharashtra, India. The offered range is ideal for providing security, visibility and safety in path lighting applications. By using the top-notch quality raw material and ultra-modern tools & techniques, all the products are designed and tested on different aspects, under the supervision of our well-trained professionals. Furthermore, the range of LED Path Lights is available to us competitive prices.

Features:
  • High Lumen Output
  • Less Heat- Less Maintenance
  • Long Life- Above 50,000 hrs.
  • Replacement Of Sodium Vapour And Mercury Vapour High Wattage Lamps.
  • Wide Spread Light To Cover Maximum Area
Applications:
  • Area Lighting
  • Campus Lighting
  • Garden Lighting
  • Outdoor Lighting
  • Street Lighting

Technical Specification :

Details

NL-PL-01-003

NL-PL-02-006

NL-PL-02-009

Power

03W

06W

09W

Input Voltage

90-300V AC,Frq 50 HZ

Power Factor

More than 0.90

Colour Temperature

2700K to 6500K

CRI

More than 70

THD

Below 5%

Beam Angle

120-170 deg

Led Luminous Output

130 ~ 160LM/W

Luminaries Efficiency

Above 85%

Luminaries Lumens O/P

360(One Way)

720(One Way)

1080(one Way)

Finish Reflector/PBC

Crome plated/ Anodized/ Powder Coated good design Metal core PCB

Ingress Protection

Up to IP 68

Operating Temperature

(-30 deg to 60 deg centigrade)

LED Driver

Constant Voltage and Current

Safety Standard

As per IS Standard, LM 80

Surge protect

up to 4kva

Housing

High Pressure die cast aluminium powder coated body with hard cover inbuilt power supply

Driver Protection

Short Circuit, Over Load, Over Voltage and Over Heat Protection
